The AM-CELL C series optical automated 3D measurement system, consisting of a robot, positioner, and a tracking station, is developed for efficient and automated inspection of medium-to-large-sized parts such as stamping, injection-molded, machined sheet metal, and cast parts. Designed with innovative modular units, it enables various layouts, flexible deployment, and multiple-positioner operations.
Its standard interfaces can be connected to different external devices, allowing it to seamlessly integrate into production lines. Paired with the newly upgraded software DefinSight-AM, AM-CELL C supports efficient operations in various production environments, serving as an efficiency booster for intelligent manufacturing.
Welcome to explore the video showcasing the AM-CELL C Series Optical Automated 3D Measurement System! By watching our video, you’ll gain insights into the capabilities, precision, and versatile applications of the AM-CELL C Series system.
The AM-CELL C Series, compatible with Scantech’s full range of target-free and optical 3D measurement systems, can measure hundreds of parts automatically and stably 24 hours a day. The system delivers ultra-high measurement rate of up to 2,600,000 MPS and metrology-grade accuracy of 0.025 mm, and provides you with precise measurement results to visualize GD&T deviations.
Thanks to its sophisticated gray value measurement, the AM-CELL C Series enables automatic edge inspections and ensures precise results. Users can obtain accurate 3D data of closed features such as holes, slots, and rectangles of stamping parts and machined parts on the site.
AM-CELL C is aimed to empower the manufacturing process analysis to increase output from the source, reduce production costs, and achieve standardized quality control processes.
Users can choose different solutions with multiple positioners according to their measurement requirements, cycle time, and product categories, achieving efficient measurement with zero downtime. Thanks to the powerful software, multiple tasks can be processed at the same time. This advanced automated measurement solution enables continuous measurements, eliminating waiting or interruptions, and delivering a measurement rate 5 times faster than that of traditional CMM. Therefore, it is capable of significantly shortening production cycle and improving overall production efficiency.
AM-CELL C series is highly compatible with a wide range of long-reach cobots that come in different brands and types, especially for those with an arm span exceeding 1300 mm. The system supports plug-and-play operations without requiring additional hardware configuration, making it ideal for various industrial uses to decrease operating costs and preparation time.

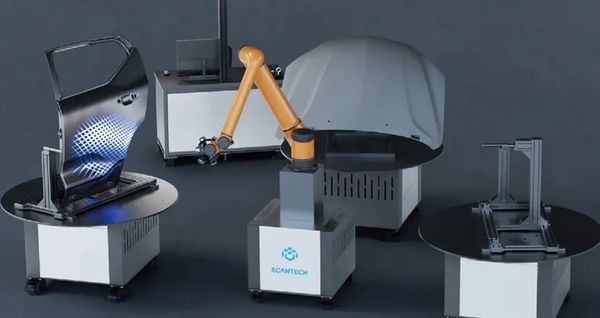

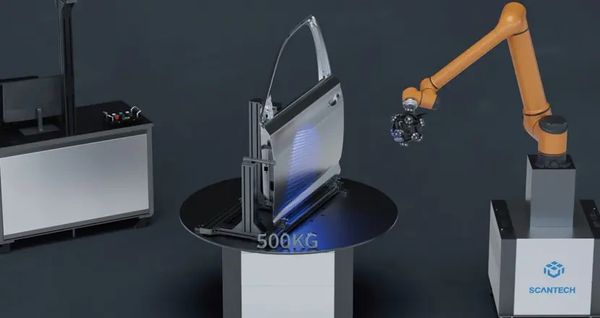

Furthermore, the system offers intelligent turntables with various dimensions and payloads ranging from 200KG to 1000KG. Users can choose suitable options when inspecting parts of various weights and sizes, enjoying highly effective and adaptable automated inspection system.
The robots and positioners are both equipped with advanced servo-mechanists with precise force feedback to reduce the need for special safety precautions and ensure safe operation. Therefore, human operators and the measurement system can share the workplace without compromising safety for both. Additionally, the system opts for various protective measures such as safety fences, safety light curtains, and safety door locks, catering to users with elevated safety needs.

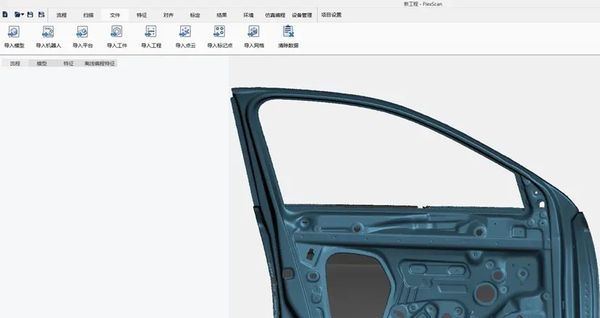

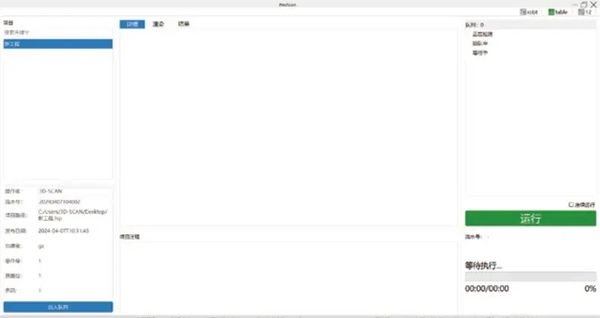

AM-CELL C is powered by in-house developed automated measurement software DefinSight-AM, which boasts advanced data capturing and highly intelligent robot control. It is compatible with the whole range of Scantech’s 3D scanners and various measurement solutions to enable precise data capturing and reliable measurement results. The software can work with mainstream industrial and cooperative robots. It can enable direct connection with robots while adhering to safety requirements by opening its control script, thus reducing the skill level needed for robot operation.
The software can be configured based on user permissions as either Engineer Mode or Operator Mode,
Engineer Mode: This mode supports off-line programming of automated measurement procedures or templates, making it convenient for engineers to maintain multiple sets of automated 3D measurement systems. Additionally, it enables engineers to trace measurement results over time and analyze statistics enhancing quality control processes for manufacturing.
Operator Mode: In Operator Mode, the software provides one-click startup, automatically invoking templates, calculations, and generating inspection reports. The operator’s access to the software is limited to only operating and reading, which ensures the safe running of programs and equipment, lowers the skill requirements, and diminishes the risks of operator errors.
Furthermore, the software supports various industrial communication protocols and device extensions, such as code reading, visual safety protection, and environmental status monitoring, which allows the entire system to be fully integrated into the industrial Internet of Things (IoT), facilitating efficient operation in lights-out factories and unmanned production environments. It allows manufacturers to monitor the evolution of batches, forecast the trend of defective products, and ensure the stability of manufacturing.
AM-CELL C Series allows for on-site measurement on the shop floor regardless of lighting and temperature variations. It can measure parts precisely under harsh conditions on the shop floor.
The system can safely and steadily run without special safety requirements. Physical fencer is optional depending on the requirements of the users.
With multiple programming methods, teachers and even students without much expertise can learn how to operate the measurement system safely in a short timeframe. It shows our commitment to creating a talent cultivation ecosystem in the way of industry-university-research integration.
