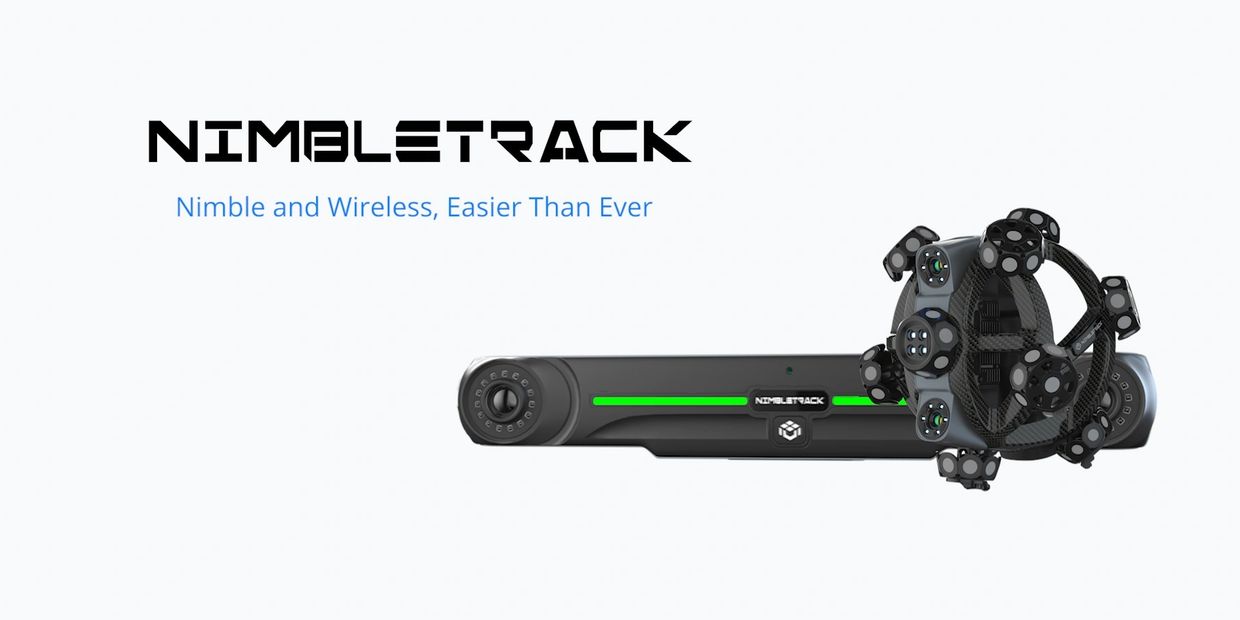

NimbleTrack Wireless 3D Scanning System
The NimbleTrack wireless 3D scanning system is highly compact and agile, which is designed to redefine the precise 3D measurements of small-to-medium-sized parts. Thanks to powerful on-board chips and built-in battery power supply, its 3D scanner and optical tracker are fully wireless, enabling true freedom.
With the most advanced technology, it offers the ultimate 3D scanning experience for users. Both the 3D scanner and tracker can be used for vast applications to deliver efficient and reliable measurement experiences.
NimbleTrack ushers in the third generation of Scantech’s 3D scanning technology featured by intelligent and wireless 3D scanning. With its wireless, target-free, precise 3D scanning and high portability, NimbleTrack revolutionizes the field of 3D scanning.

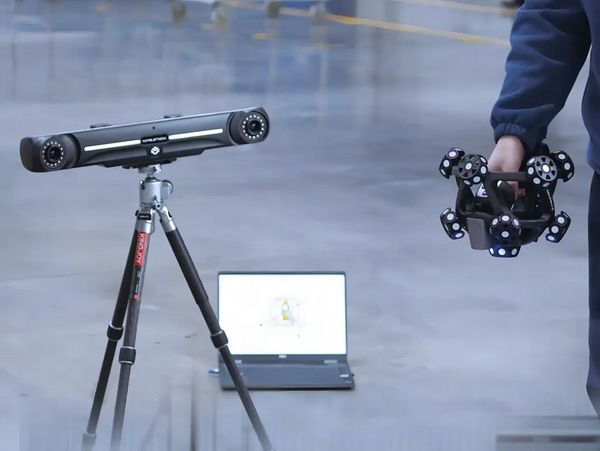

Wireless Freedom
This nimble optical 3D scanning system sets a new benchmark for wireless and free 3D scanning. It eliminated the need for any cables to power the instrument or transfer data. On-site measurement won’t be a problem even when there is no power supply available.
The 3D scanner has a built-in powerful battery, and the tracker comes with standard plug-in batteries to deliver a dual power cycle, ensuring continuous operations over a long time. All of these advancements allow you to enjoy free measurement experiences.
Dual Edge Computing and Robust Performance
Both NimbleTrack’s 3D scanner and tracker have powerful edge computing modules, which enables it to deliver fast and smooth scanning experiences at a high frame rate of 120 FPS.
When compared with common handheld 3D scanners, it saves the need for a power supply and the hassle of sticking targets, which highly streamlined measurement processes. It tackles complex tasks with ease by delivering target-free and efficient 3D scanning.

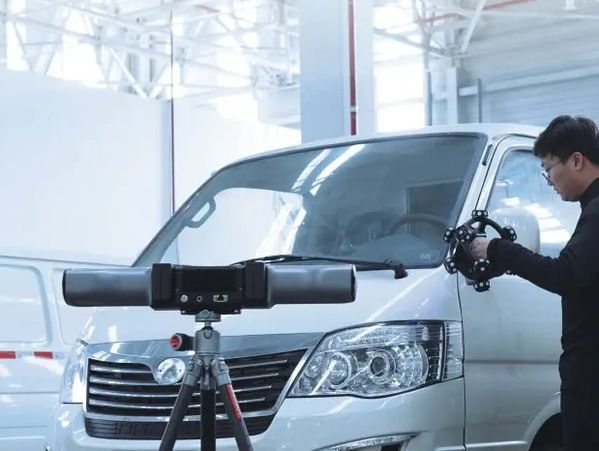

Incredible Compact & Plug-and-Play
Lightweight and compact, NimbleTrack sets a new standard for the optical 3D scanning system.
Its lightweight design allows you to measure parts wherever you need it. With a length of 57 cm and a total weight of 2.2 kg, i-Tracker stands out by delivering easy uses. Besides, engineers and professionals can use the 3D scanner, weighing only 1.3 kg, for long periods without feeling tired.
The system comes with a small standard protection case that can accommodate all its instruments to deliver flexible and convenient uses.
Stable Structure With CFFIM Technology
NimbleTrack’s 3D scanner embraces an innovative Carbon Fiber Frame Integrated Molding (CFFIM) technology to ensure lightweight design and high strength, breaking through the limits posed by traditional assembled structures. It is highly stable as its structure is steady and it is unaffected by thermal variations. One time of calibration can ensure it works steadily for a long period. You can enjoy full control over every scan with this cutting-edge technology.
Unleash Precision, Unleash Excellence
Utilize the full potential of Scantech’s metrology products and advanced algorithm, the system achieves an accuracy of up to 0.025 mm and maximum volumetric accuracy of 0.064 mm across the whole range. NimbleTrack enables users to capture 3D data with meticulous details and industrial-grade precision.

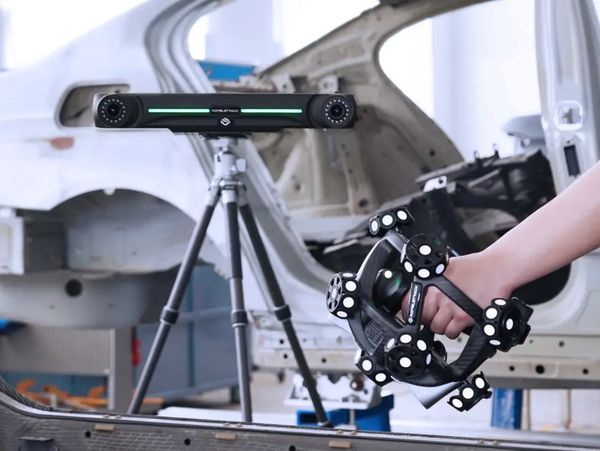

Next Level 3D Scanning
NimbleTrack is smaller, smarter, and mightier, allowing users to explore novel applications for industrial measurements.

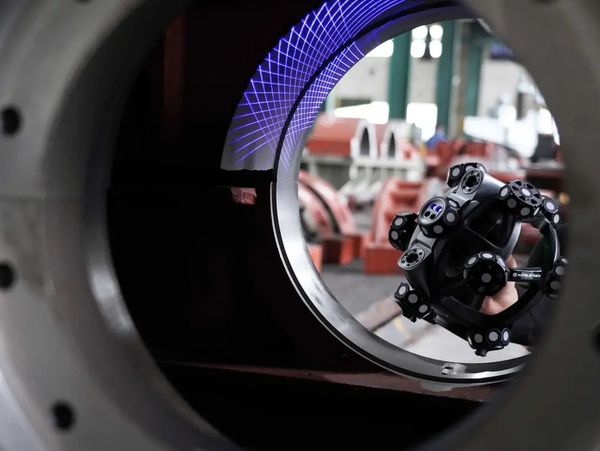

When dealing with narrow spaces or hard-to-reach areas, the 3D scanner can be operated wirelessly and independently, allowing for instant scanning and one-handed control. This enables high-precision scanning of up to 0.020 mm at any time and in any location.
When measuring even larger-sized parts, the optical tracker can further enhance precision by using its built-in infrared large-area photogrammetry to reduce accumulated errors accumulated by scan alignment.
Get the Most From Your NimbleTrack
Intelligent Edge Detection
Intelligent Edge Detection
Intelligent Edge Detection

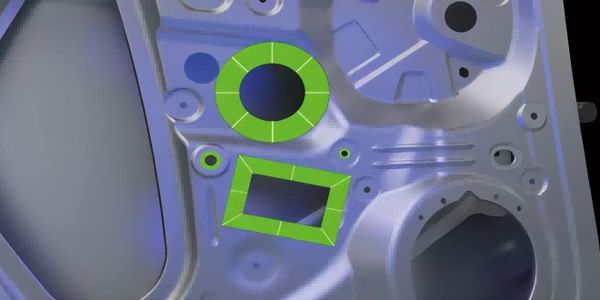

NimbleTrack boasts an optional module of precise edge detection, which is enabled by gray-value measurement. Users can inspect closed features such as holes, slots, edges precisely and obtain information such as positions and diameters.
i-Probe500
Intelligent Edge Detection
Intelligent Edge Detection

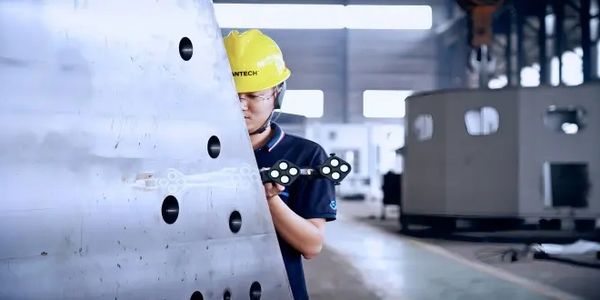

It can be paired with a tracking i-Probe to probe inaccessible areas such as reference holes and hidden points. This contact measurement probe can ensure precise results with both wired and wireless options.

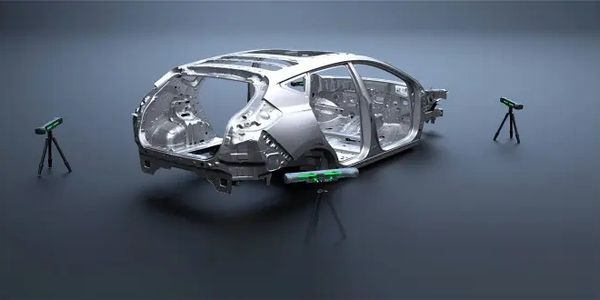

Multi-tracker Measurement
Multi-tracker Measurement
Multi-tracker Measurement

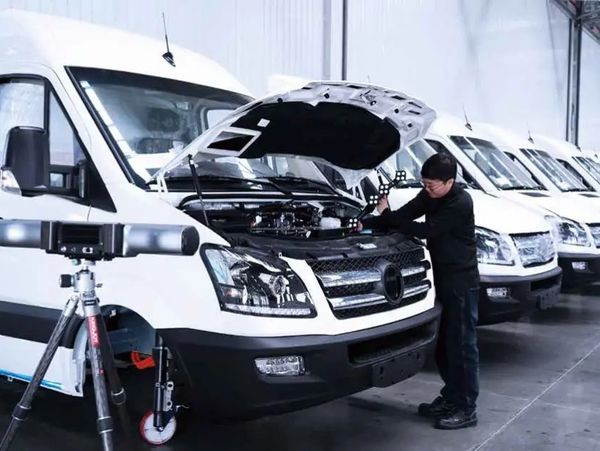

Its measurement range can be dynamically extended by adding more i-Trackers so that it can measure large-scale objects without compromising accuracy.

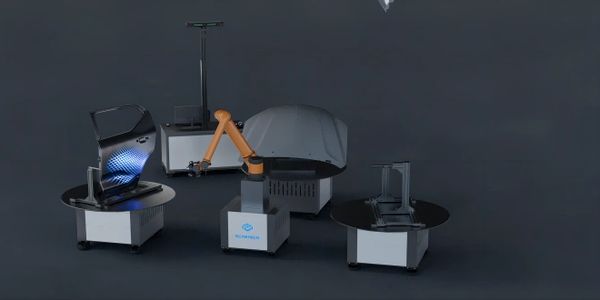

Automated Measurement
Multi-tracker Measurement
Multi-tracker Measurement
Based on the new 3D scanner architecture, we have customized a clamping method for automated measurement, making it more compatible with various types of robots. Its 360-degree evenly distributed target sets allow for all-round and precise tracking, facilitating forming efficient automated batch measurement systems.
