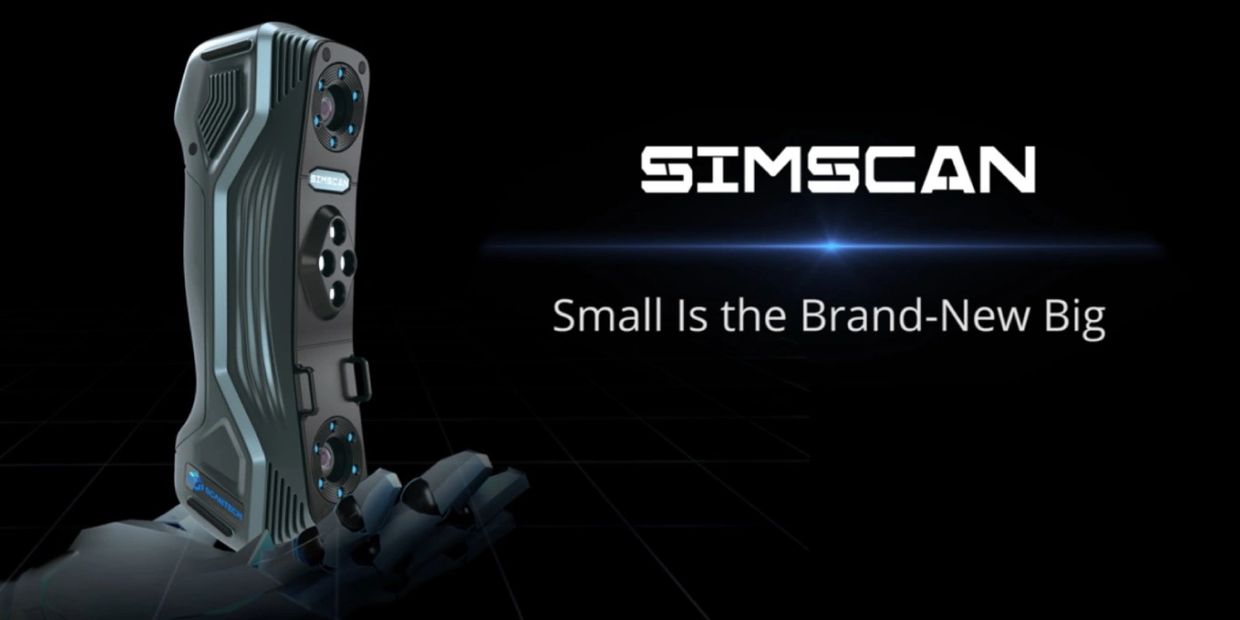

SIMSCAN Handheld 3D Laser Scanner
SIMSCAN, a palm-sized portable 3D laser scanner, is specially designed for 3D scanning narrow and hard-to-reach areas. Featuring full-metal housing, it is incredibly sturdy and reliable. SIMSCAN has become a disruptive innovation among professional 3D scanners due to its compact size, simplicity and robust performance. Its cutting-edge design also wins itself German Red Dot Award and China Design Silver Award. SIMSCAN performs high-quality 3D scanning regardless of any restrictions from the working environment. It is ideal for 3D scanning both narrow spaces and large-scale parts. Users can accurately capture every detail of objects and construct 3D models in a very short amount of time with the help of this metrology-grade 3D measurement instrument.
Single-handed Control
SIMSCAN’s full-metal housing provides solid protection and ensures extraordinary durability. Weighted only 570 g and sized 203 × 80 × 44 mm, SIMSCAN portable 3D scanner brings unparalleled simpleness for scanning anything with one hand.
Because of its hollow structure, it dissipates heat more effectively. The 3D laser scanner is efficient at performing measurements with low power consumption. Thanks to its versatility, it can meet a wide range of needs of 3D measurements.
Narrow-space Measuring Booster
Compared with its competitors, SIMSCAN has a much shorter camera distance of 130 mm, which forms a steeper view angle to 3D scan narrow spaces. Therefore, SIMSCAN is more capable of capturing accurate and complete data in hard-to-reach areas like deep grooves and ensures users to capture full-field data.
Detail, Everywhere
With its built-in HD cameras and three scanning modes, it realizes high-precision scanning with an accuracy up to 0.020 mm. It can accurately capture the 3D data of objects with complex surfaces or in confined areas.
Remarkable Portability
SIMSCAN boasts a compact size and excellent portability. No matter in narrow spaces or under huge objects, SIMSCAN portable 3D scanner can conduct 3D measurements anywhere and anytime. When paired with wireless communication link AirGO Power, it supports mobile 3D scanning and data viewing for truly flexible, reliable, and effective measurement experiences.
With its multifunctional buttons, users can switch between different modes at any time. Its single-handed operation allows flexible measuring and its ergonomic design makes it comfortable to use. Designed with an anti-slip housing and a strap, it is safe for users to scan in all directions freely.
Smooth 3D Experience
SIMSCAN boasts a remarkable 3D scanning rate of up to 2.8 million measurements per second, made possible by its advanced algorithm. This design ensures users enjoy a seamless and efficient 3D digitization process.
When paired with Scantech’s automated 3D measurement system, it enables continuous measurements, breaking free from the constraints of traditional methods. Automated high-batch measurement overcomes the limitation of traditional methods and it significantly improves efficiency for all stages of manufacturing.
